The West Camp Wind Farm is a planned 500MWac wind energy project in Navajo County, Arizona. With approximately 104 wind turbines, the wind farm will produce cost-competitive clean energy while creating economic benefits for all Arizonans.



The planned project will be built in a remote area on approximately 53,000 acres of mostly private land, located about 10 miles south of Joseph City, Arizona. The wind farm will connect to Arizona’s electrical grid at the Cholla Power Plant, which is planned to be decommissioned.

Since 2010, AES has been helping Arizona meet its ambitious 3 GW energy storage target, while powering economic development and ensuring the delivery of safe, reliable and clean energy to local communities.

The proposed facilities for the project will include some of the most advanced wind energy technology deployed to date in Arizona. In addition, the proposed on-site components of the project include an operations and maintenance building, up to two project substations, permanent meteorological towers, a switchyard, a high voltage project transmission line, and access roads. The site will also feature a radar-activated lighting system that enables the federally required turbine lights to turn on only when low flying aircraft are in this remote area to preserve Northern Arizona’s dark sky characteristics. Energy storage may also be included as part of the project’s high voltage infrastructure.

Learn more about AES in Arizona here.

Project specifications



West Camp Wind will contribute to the state’s movement toward a sustainable, renewable energy future and goal to reach 80% renewable energy by 2050.

up to 500

megawatts generated

approx. 104

wind turbines

30 year

useful life

500+

construction jobs and 20-30 full time local positions

368,925

homes powered annually

2,090,049

tons of CO2 emissions reduced annually

Project locations

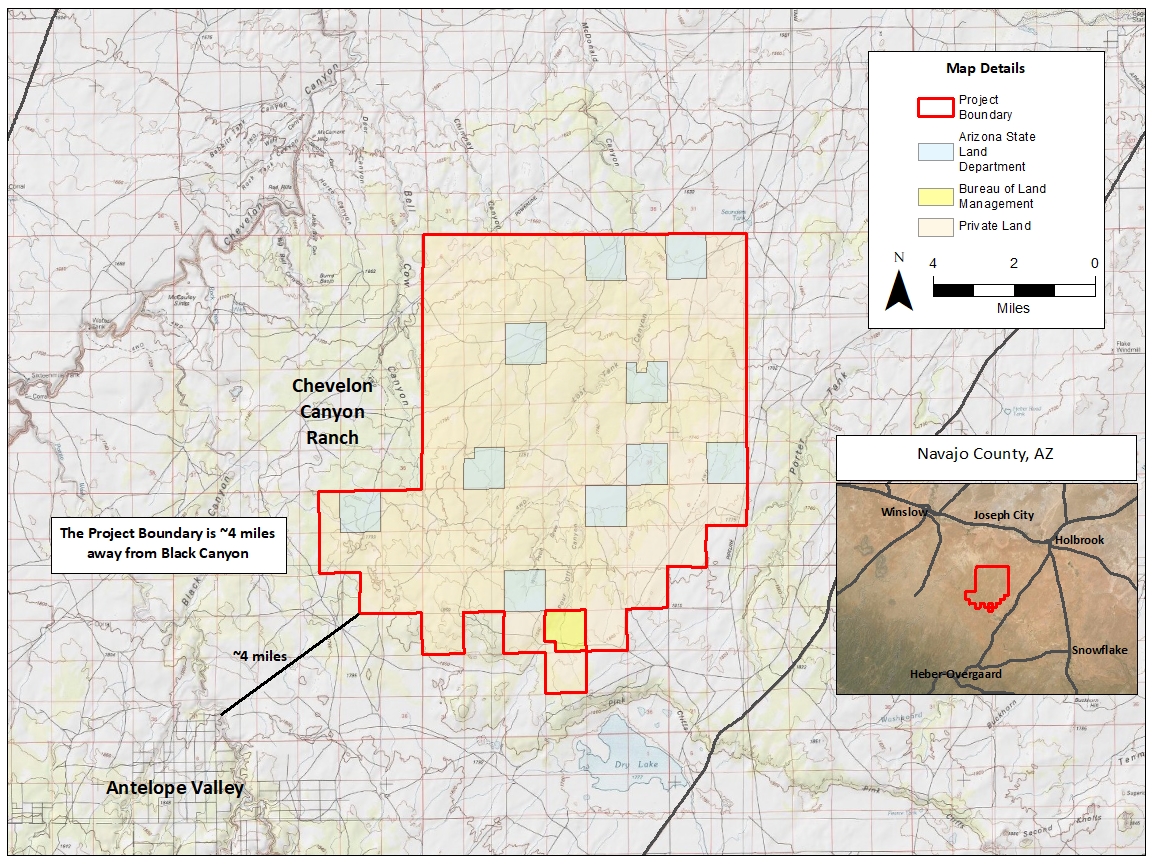

West Camp Wind Farm Site Plan from Navajo County Special Use Permit Application

West Camp Wind Farm Site Context Plan from Navajo County Special Use Permit Application

West Camp Wind Farm Gen-Tie Options from Navajo County Special Use Permit Application

Project updates

May 24, 2022 - Navajo County Public Meetings, Holbrook Recreation Center

August 4, 2022 - Meet & Greet, Joseph City School District Office

August 18, 2022 - Planning & Zoning Public Hearing, Navajo County Governmental Complex

September 13, 2022 - Board of Supervisors unanimously approved Special Use Permit

Visual Simulations

Existing condition

Simulated condition

Existing condition

Simulated condition

Existing condition

Simulated condition

Existing condition

Simulated condition

Existing condition

Simulated condition

Existing condition

Simulated condition

FAQs

West Camp can produce 500 megawatts of wind energy – enough to power over 360,000 homes annually. In 2021, wind power in Arizona (618 MW) saved approximately 2 billion gallons of water and avoided at least 4 million metric tons of carbon dioxide emissions.

A wind turbine’s ability to produce power increases significantly with height, as does its efficiency. The proposed maximum permitted height of the turbines is approximately 820 feet from the base to the tip of the rotors.

Wind turbines have not been shown to have an adverse impact on human health. No studies have identified a direct link between turbines and long-term health impacts such as hypertension, cardiovascular disease, high blood pressure, tinnitus, headache/migraine, hearing impairment, or other diseases. Shadow flicker and noise from the turbines have not been shown to pose a health risk.

Shadow Flicker: Shadow flicker is a moving shadow created by turbine blades located between the sun and an observer. For shadow flicker to be observed, there must be a direct line of sight between an observer and the incoming shadow flicker. Sunlight and the blades must be directly facing or facing away from the sun. This means that when shadow flicker effects are observed, it’s typically for a short duration during the low angle sunlight hours, just after sunrise and just before sunset. The farther from the turbine a person is, the less noticeable the shadow flicker would be. Shadow flicker would primarily be contained within the wind farm site and the amount of potential flicker extending into adjacent areas would be short in duration and low in intensity.

Shadow flicker does not have the potential to trigger epileptic seizures as epileptic seizures are precipitated by light flashes in the range from 5 to 30 Hz. The proposed project’s wind turbine blade-pass frequency is approximately 0.59 Hz, or less than 1 alternation per second, so no negative health effects to individuals with photosensitive epilepsy are anticipated. More information is available on the Epilepsy Society website here: https://epilepsysociety.org.uk/about-epilepsy/epileptic-seizures/seizure-triggers/photosensitive-epilepsy

Noise: No scientific peer-reviewed study shows a direct link between living close to turbines, and the noise they emit (audible and inaudible), and physiological health effects. Predicted sound levels for West Camp are not expected to result in annoyance, sleep disturbance, or other health effects in the general population. West Camp is not expected to have disproportionate effects on people with autism or heightened noise sensitivity because the project’s audible noise would be low and, in most cases, imperceptible above the existing ambient noise.

The project is not located in an environmentally sensitive area. The West Camp Wind Farm will not significantly impact threatened or endangered species in the area. AES conducted eagle and raptor studies in the region to understand the habits of raptors. AES has committed to prescriptive setbacks from elevated eagle and raptor use areas to reduce avian collision risk. Additionally, the facility will be designed to limit perching and nesting on structures.

Tall wind turbines often need lights installed on them to ensure that low-flying aircraft do not strike them. This can change the night sky landscape. To mitigate this impact, West Camp will use an advanced radar-activated lighting system that only activates when low-flying aircraft are sensed in the project area.

At full buildout, West Camp will require 500+ total construction jobs during the estimated year of peak construction.

West Camp will also employ 20-30 full-time local staff to operate and maintain the wind farm including an experienced site manager and wind BOP engineer, as well as wind technicians. We will also employ local companies for support activities, such as electrical, mechanical, material, sourcing, concrete, landscaping, and environmental monitoring.

No. Power generated by wind turbines does not produce any greenhouse gas emissions.

The anticipated life of the project is 30 years. Prior to expiration of this agreement, AES will evaluate whether to continue operation of the West Camp Wind Farm or to decommission it. Should the period of the project’s operation be extended, the appropriate agreements will be obtained, which may include upgrading or repowering the facility. If the project is decommissioned, the power generation equipment will be removed, and the site restored to pre-existing conditions.

The wind turbines are designed to withstand hurricane force winds and other severe weather such as a lightning strike. When unusual weather events occur, the wind turbines automatically curtail operations.

The large propeller-like blades of a turbine are designed to capture the kinetic energy of the wind. When the turbine blades begin moving, they spin a shaft that leads from the hub of the rotor to a generator, which turns that rotational energy into electricity.

AES Clean Energy plans to continue to develop wind, solar, and energy storage projects in Arizona, and is committed to being a dependable, long-term corporate partner and good neighbor in all development projects.
